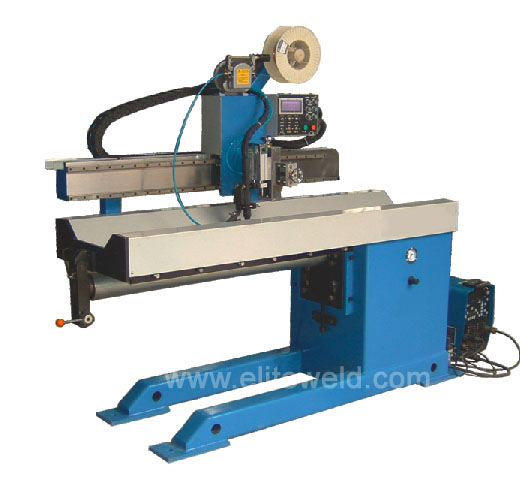

ZH series are one kind of special welding machine for welding vertical-beam of sheet.operating with argon-arc welding machine,gas-protected welding machine and plasm power,it is the necessary equipment for pressure vessel,chemical equipment,aero space device,locomotive,food machinery and appliance manufacturing.

主要技術參數 Main Technical Parameters
規格型號	ZH-500	ZH-1000	ZH-1500	ZH-2000	ZH-2500	ZH-3000	ZH-3500
適用工件長度	≤500	≤1000	≤1500	≤2000	≤2500	≤3000	≤3500
最小筒體直徑	φ110	φ150	φ180	φ230	φ280	φ340	φ400
適用工件板厚	0.2～6		0.4～6			0.5～8
焊接速度(mm/min)	150～1500
調速方式	變頻無級調速
工件夾緊方式	氣動夾緊
焊槍行走精度	±0.1		±0.15			±0.2
